Solar Powered Hydroponics: Size Your System Right

A single 100-watt solar panel, a small battery, and a $15 submersible pump are all you need to run a hydroponic system completely off-grid. For most home setups, that’s genuinely true. The mistake most growers make is assuming they need the same solar rig a greenhouse farmer would use. You don’t. Your pump probably draws less power than a phone charger.

Here’s how to size it correctly, pick the right system type, and handle the cloudy-day problem without overthinking it.

Why Solar Makes Sense for Hydroponics (More Than You’d Think)

Hydroponics already uses far less energy than you’d expect compared to conventional growing but it still runs on electricity 24/7. Pumps, air stones, timers are all pulling from the grid constantly. If your system is outdoors on a patio or balcony, you’ve got a direct power-generation source sitting right above your plants.

The real case for solar hydroponics isn’t about being off-grid for its own sake. It’s that outdoor systems are often far from an outlet, and running extension cords permanently is ugly and a safety hazard. Solar solves the wire problem cleanly.

The secondary case is cost. The electricity cost of running a hydroponic system is low but real, and over a full grow season it adds up. A basic solar setup pays itself back within one to two seasons for most small systems.

The Math Everyone Skips: Sizing Your Panel to Your Pump

Here’s how to do the math plainly.

Your pump is the main draw. A typical submersible hydroponic pump runs anywhere from 3 watts (small fountain-style pumps) to 30 watts (larger recirculating pumps for a full NFT channel). An air pump for a DWC bucket usually draws 2 to 5 watts. Add those together and you have your total watt draw.

A 100-watt solar panel in decent sunlight produces roughly 300 to 400 watt-hours per day (accounting for real-world conditions: clouds, angle, time of day). If your pump runs continuously and draws 10 watts, that’s 240 watt-hours per day. A 100W panel covers that with room to spare.

Here’s a quick sizing reference:

The formula: daily watt-hours needed divided by peak sun hours equals panel wattage. For most of the US, assume 4-5 peak sun hours per day. If your pump draws 15W continuously: 15W x 24h = 360Wh divided by 4.5h = 80 watts of panel. A 100W panel gives you safe headroom.

You can also run your pump on a timer to cut consumption in half. For NFT, the roots stay moist even when the pump is off, so 15 minutes on / 15 minutes off is a common and effective cycle. Use a reliable digital timer rated for DC current if you’re on a solar controller.

Can You Run a Hydroponic Pump Directly from a Solar Panel?

Technically yes. Practically, it’s a bad idea for most setups.

A direct-connect pump (panel to pump, no battery, no controller) only runs when the sun is shining at the right intensity. On a cloudy morning, the pump trickles or stops entirely. On a clear afternoon, it might run full blast. NFT channels can dry out in under an hour if the pump stops during peak heat. That’s a dead crop.

The correct setup is: panel to charge controller to battery to inverter or DC load output to pump. The battery smooths out the gaps and gives you power through the night or through a grey day.

For a small system, a 20Ah to 50Ah deep cycle battery (AGM or lithium) is plenty. At 12V, a 20Ah battery stores 240 watt-hours. If your pump draws 10W and fails over to battery at night (say, 14 hours of darkness), that’s 140Wh drawn. A 20Ah battery covers one night without recharging. A 50Ah battery gives you 600Wh, meaning you can run through two overcast days before you’d have any problem.

Lithium (LiFePO4) deep cycle batteries are worth the extra cost for long-term outdoor installs. That said, if you’re just testing the concept, a basic AGM battery from an auto parts store works fine.

Which Hydroponic System Works Best with Solar Power?

Not all systems are equally solar-friendly. The deciding factor is how forgiving they are when the pump stops.

Kratky method is the best match for solar by a wide margin. There’s no pump at all, so plants sit in a reservoir and drink as needed. Zero electricity requirement. If you’re growing leafy greens on a sunny balcony, a simple bucket system is genuinely unbeatable for solar simplicity.

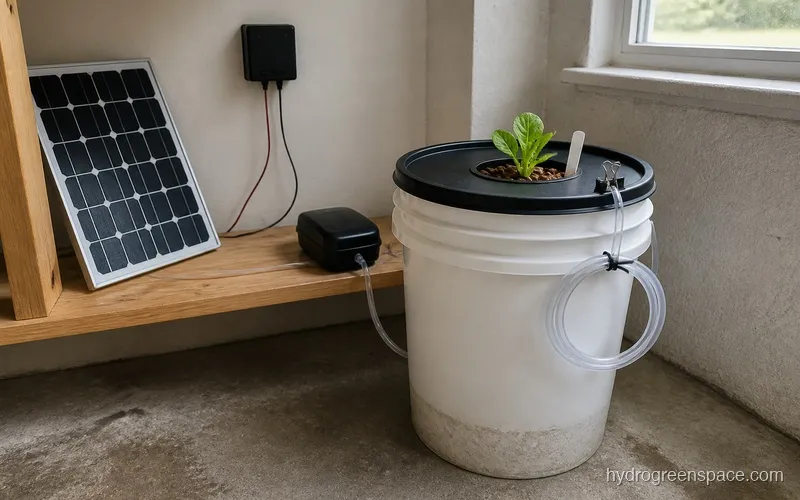

DWC (Deep Water Culture) needs an air pump, not a water pump, which is low draw and nearly always running. A small DWC setup on a 30W panel and a 20Ah battery is a very manageable solar project. The roots are always submerged, so brief power interruptions don’t cause immediate damage. Here’s a full guide on building a DWC system if you want to start there.

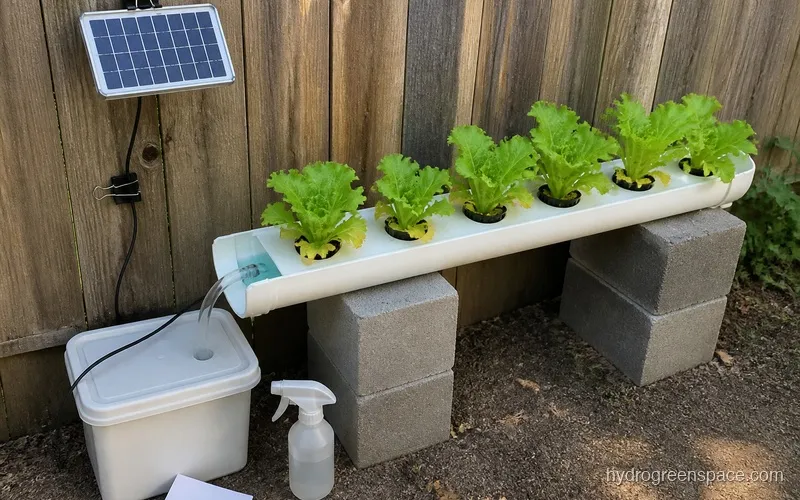

NFT (Nutrient Film Technique) works well on solar but requires more planning. The thin film of nutrient solution flowing over roots means any pump failure dries the roots out fast. You need reliable battery backup and, ideally, an alert system if the pump stops. That said, NFT is highly efficient with water and runs on small, low-draw pumps, making it great for a well-designed solar setup.

Ebb and flow / flood and drain systems can be run on intermittent cycles, which is solar-friendly. You only need pump power during flood periods (typically 2-4 times per day for 15-30 minutes each). Total daily pump runtime might only be 2 hours, meaning even a modest panel and small battery covers it easily.

Skip aeroponics if you’re on solar. High-pressure aeroponic systems need constant pump pressure to mist roots, and any interruption causes rapid root die-off. Not worth the risk without a very robust backup setup.

Handling Cloudy Days and Seasonal Changes

The cloudy-day problem is real but manageable if you plan for it.

First, size your battery for at least 1.5 to 2 days of autonomy, meaning your battery can run the system for 36 to 48 hours with zero solar input. For a 10W pump running continuously, that’s 360-480Wh of usable battery capacity. A 50Ah lithium battery at 12V gives you 600Wh usable. That covers a full overcast day plus overnight with margin.

Second, use a timer if you haven’t already — intermittent pump cycles (covered in the sizing section above) cut battery demand in half and extend your cloudy-day window significantly.

Third, consider winter sun angles if you’re in a northern latitude. A panel tilted at 45 degrees captures significantly more winter sun than one lying flat. This matters most for year-round outdoor and balcony setups.

What a Real Small System Looks Like

Here’s a concrete example of a patio solar hydroponic system built for under $200 in parts (not including the growing system itself):

• Panel: 100W 12V monocrystalline panel (~$60-80 used, $100-120 new)
• Charge controller: 10A PWM or MPPT controller (~$15-25)
• Battery: 35Ah AGM deep cycle ($50-70), or 20Ah LiFePO4 ($80-100)
• Inverter (optional): 150W pure sine inverter if your pump runs on AC (~$25-30)
• Pump: low-draw submersible or air pump drawing under 10W (choosing the right pump matters here)
• Timer: digital cycle timer for intermittent pump operation (~$10-15)

Total wiring is straightforward: panel to charge controller (comes with instructions), controller to battery terminals, battery to inverter or DC load output, load to pump. Most controllers include clear terminal labeling.

The whole thing fits in a milk crate. The electricity cost of running your full system drops to essentially zero once the solar setup is paid off.

If you want to go deeper on the off-grid side of this, the off-grid hydroponics companion guide covers larger setups, grow light integration, and full energy audits for serious remote growing.

You don’t need a perfect sunny climate. You don’t need an electrician. Pick your system type, run the watt-hour math, and build in a battery sized for your worst month rather than your best day. Start with that, and your system will run reliably through most of what the weather throws at it. Solar power is one of several advanced hydroponic techniques that expand what’s possible once your core growing setup is running.
